FIBER OPTIC DROP CABLE CLAMP
FTTH Cable Tension Clamp ODWAY-22P
Ø DESCRIPTION

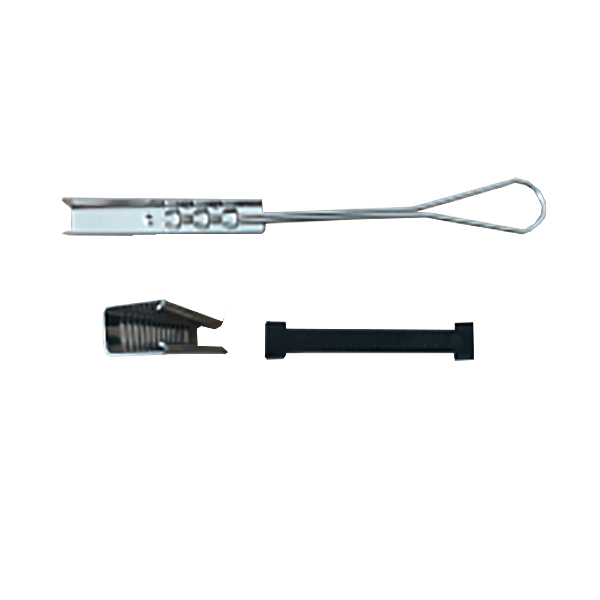

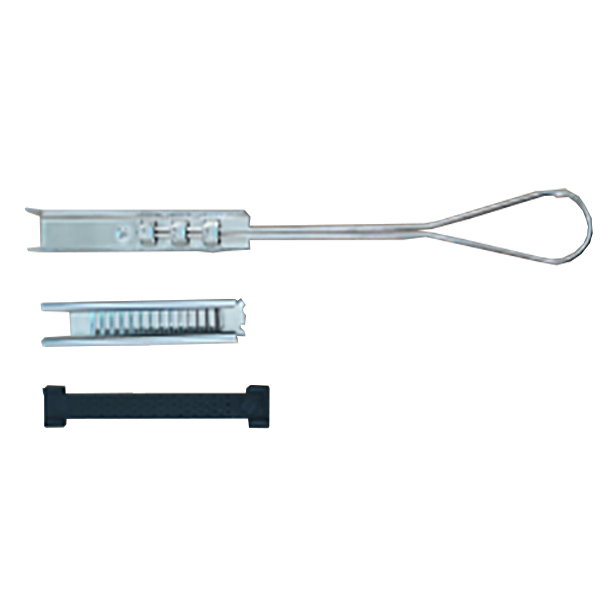

ODAWY-22P series are tension clamps for FTTH drop cable. The drop wire clamp ODAWY-22P is composed of a body, a wedge and a shim. A solid wire bail is crimped to the wedge. All parts are made out of stainless steel.
TUOLIMA offer this tension clamp with appropriate dead-end anchor FTTH ODAWY-22P clamp, S-type, ACC and other FTTH clamps.
All the assemblies passed the tensile tests, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature-cycling test.
Key words: Tension clamp for drop wire, Tension clamps for FTTH drop cable ODAWY-22P cable clamp.
Ø ORDERING INFORMATION
Code | Length | Outer Material | Thickness of outer sheath | Tensile Strength | ||
ODAWY-22P | 220mm | Stainless Steel 201/304/430 | 0.78mm | 450N | ||
Cable Diameter | Internal Material | Insert Material | Thickness of insert | Weight | ||
3-7mm | Stainless Steel 201/304/430 | Stainless Steel 201/304/430/PP | 1mm | 43.2g | ||
Ø FEATURES
• Place the cable in the clamp body
• Place the shim in the clamp body over the cable, the grip side in contact with the cable
• Insert the wedge through the front of the body and pull to secure the cable

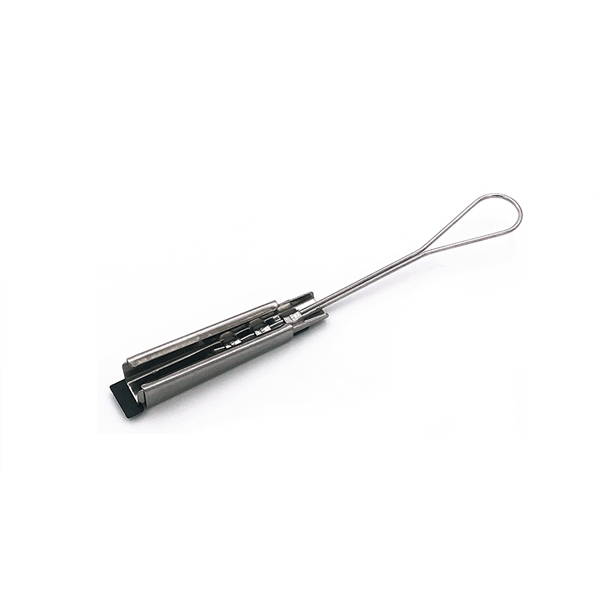

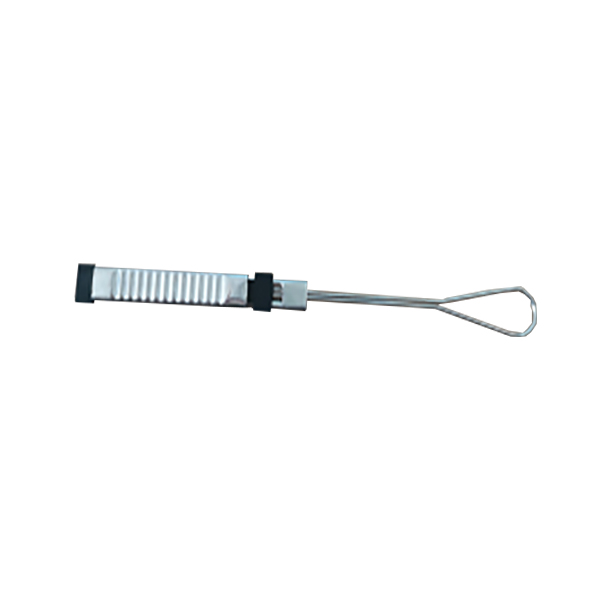

Ø DETAILED IMAGES
