FIBER OPTIC DROP CABLE CLAMP
FTTH Cable Tension Clamp ODWAY-15
Ø DESCRIPTION
ODWAY series are tension clamps for FTTH drop cable.
TUOLIMA offer this tension clamp with appropriate dead-end anchor FTTH ODWAC clamp, S-type, ACC and other FTTH clamps.
All the assemblies passed the tensile tests, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature-cycling test.
Key words: Tension clamp for drop wire, Tension clamps for FTTH drop cable.
Ø ORDERING INFORMATION
Code | Length | Outer Material | Thickness of outer sheath | Tensile Strength | ||
ODWAY 15 | 150mm | Galvanized steel | 0.7mm | 450N | ||
Cable Diameter | Internal Material | Insert Material | Thickness of insert | Weight | ||
3-5mm | Galvanized steel | Steel | 0.7mm | 24.4g | ||
Ø FEATURES
• Place the cable in the clamp body
• Place the shim in the clamp body over the cable, the grip side in contact with the cable
• Insert the wedge through the front of the body and pull to secure the cable

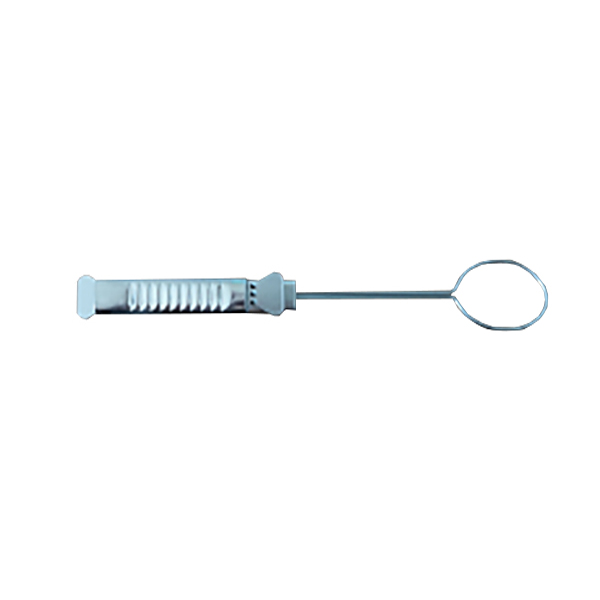

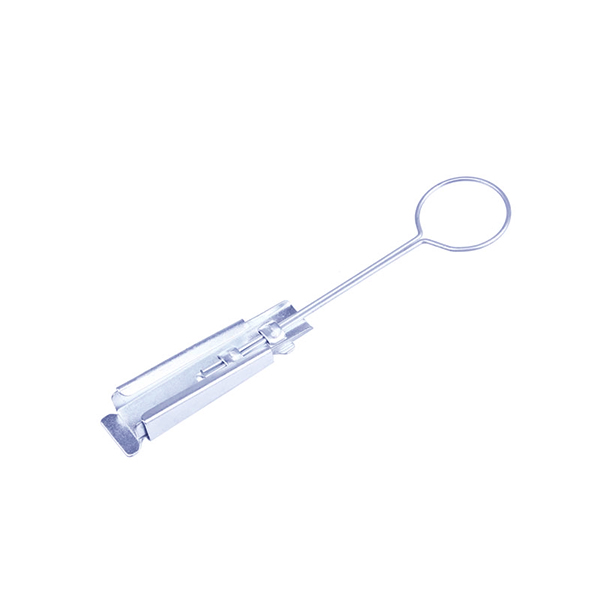

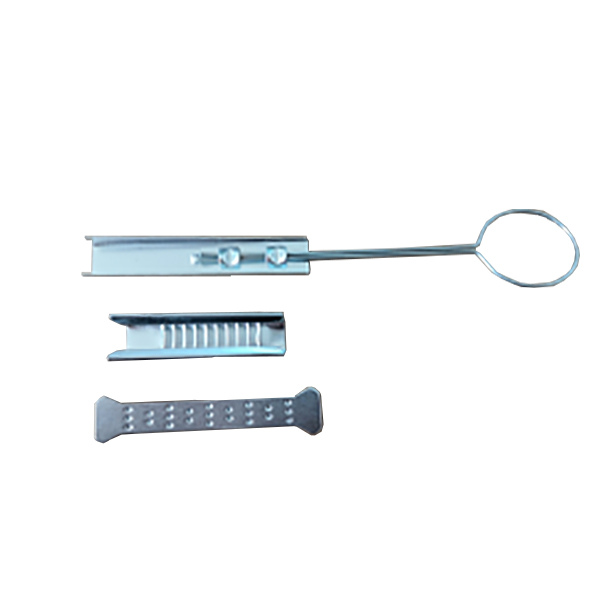

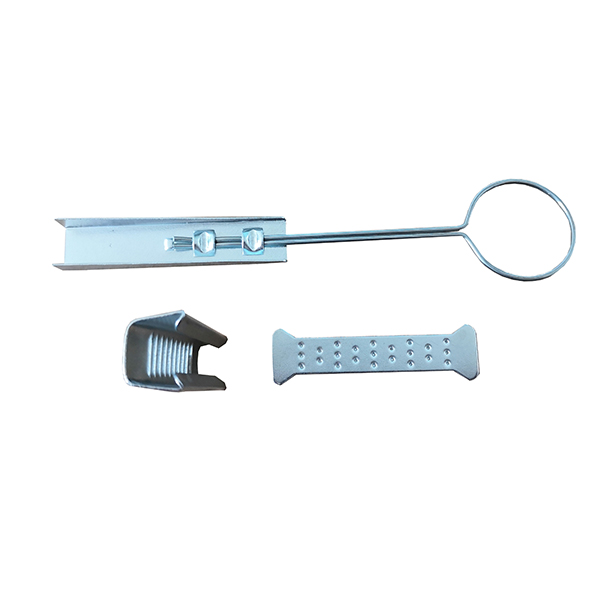

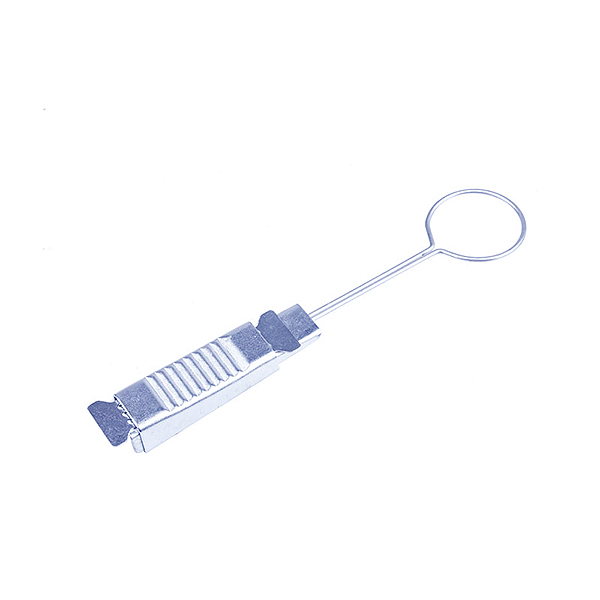

Ø DETAILED IMAGES
