FIBER OPTIC FAST CONNECTOR

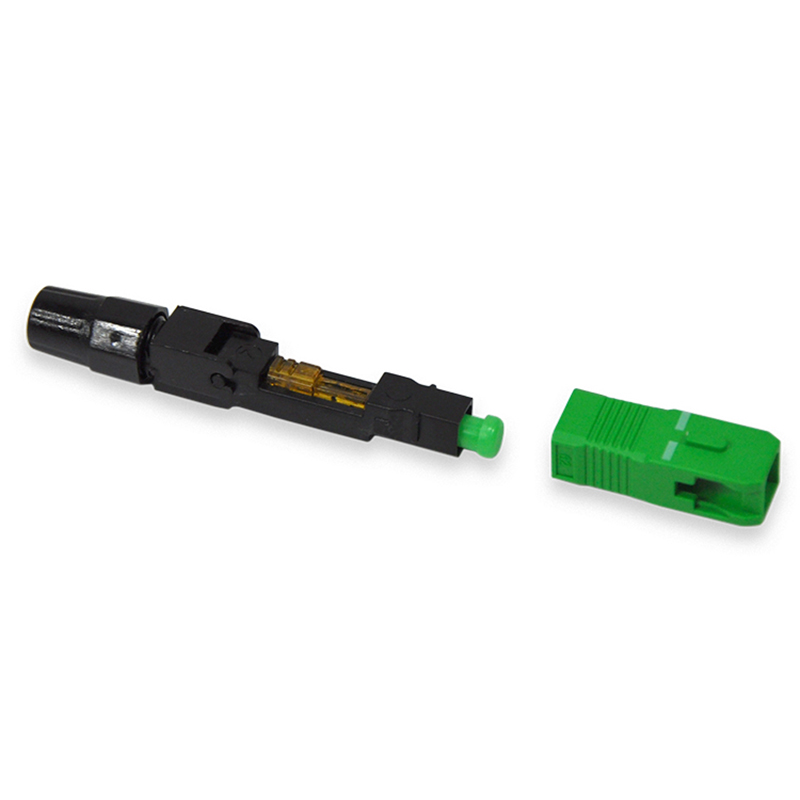

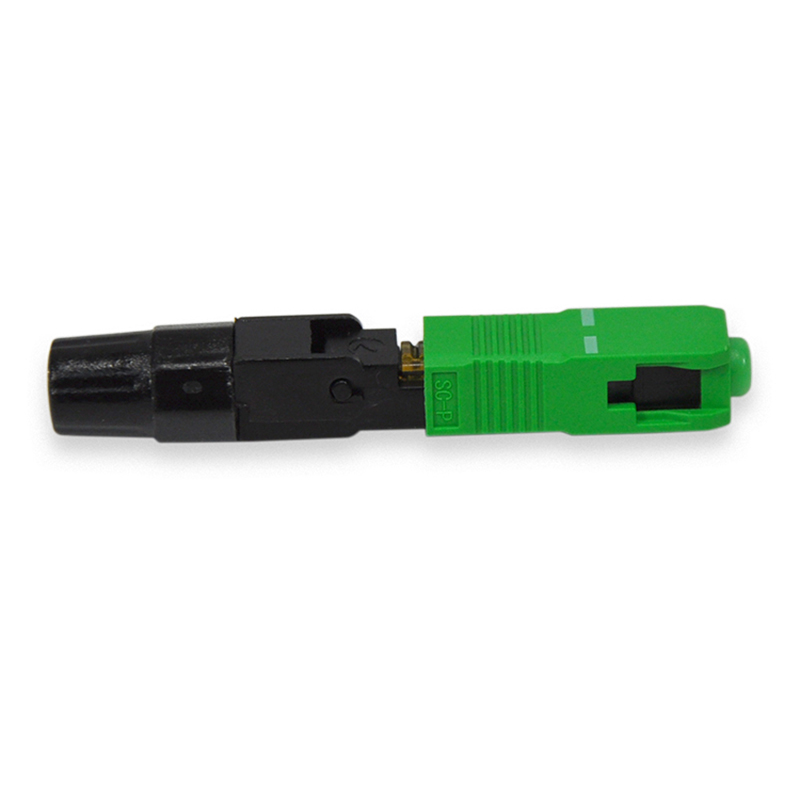

A TYPE FIBER OPTIC FAST CONNECTOR
A TYPE FIBER OPTIC FAST CONNECTOR
The Application of Fiber Optic Fast Connector
1. Connect Drop cable
The optic fiber shown on the label scale is a prefabricated fiber used for connecting.
The Specification of Fiber Optic Fast Connector
Insertion loss | ≤0.3dB |
Return loss index | ≥50dB |
Tensile strength | ≥50N |
Features of Fiber Optic Fiber Optic Fast Connector
l Easy to install. The quick-mount SC connector can provide quick and easy fiber termination in the field.
l Allows the installer to complete and connect in minutes on fiber patch panels and equipment.
l This connector system eliminates any requirement for epoxy, adhesive, or costly curing ovens, with features of quality installation, high success rate, and high reliability.
l Insertion loss: <0.3 dB.
l Return loss:> 50 dB.
Item | Fiber Optic Fast Connector |
Inserction Loss | ≤0.3dB(MA*0.5dB) |
Return Loss | APC≥60dB UPC≥50dB |
Fiber | 2.0*3.0mm (ftth indoor drop cable) |
Tension | 20N |
Temperature Alteration Radio | ≤0.5db(-40℃~+85℃) |
Temperature | -40℃~+85℃ |
